Product Overview

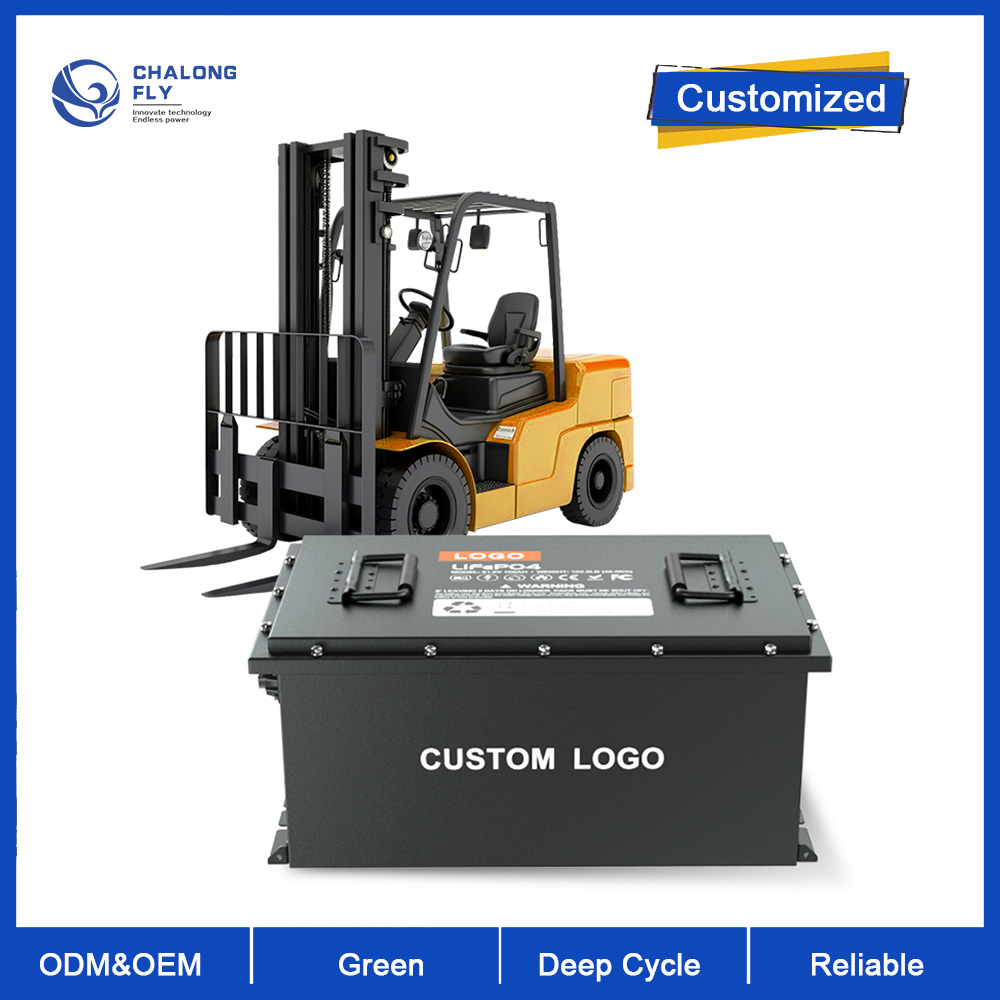

English: The 48V 190Ah LiFePO4 golf cart battery is a high-capacity enhanced version for heavy-duty and long-endurance demands. Based on the mature 48V mainstream voltage platform, it upgrades the cell capacity and discharge performance, providing ultra-long single-charge mileage and strong stable power. It is specially designed for high-load, long-hour continuous operation scenarios such as high-end golf courses, large resort fleets, and hilly terrain venues. With high-energy-density cells and enhanced heat dissipation structure, it maintains stable performance under high-load discharge and high-temperature environment. The intelligent multi-protection BMS system and 5-year warranty ensure reliable long-term commercial operation.
Core Advantages
- Ultra-Long Endurance & High Capacity: 190Ah super large capacity provides 30% longer endurance than standard 150Ah batteries, supporting all-day uninterrupted high-intensity operation.
- High-Load Stable Discharge: Optimized cell combination and discharge circuit, stable power output under heavy load and hilly climbing conditions, no voltage drop.
- Enhanced Heat Dissipation & High-Temp Resistance: Upgraded overall heat dissipation structure, effectively reducing operating temperature and adapting to high-temperature outdoor environments in summer.
- High-Efficiency Cycle Performance: Over 5500 deep cycles at 80% DOD, maintaining high capacity retention rate after long-term high-intensity use.
- Commercial-Grade Safety Performance: Multi-layer safety protection design, anti-vibration shell structure, adapting to complex road conditions and long-term commercial operation.
- Full Compatibility & Plug and Play: Standard 48V interface, compatible with all mainstream 48V golf cart models, no modification required.
Technical Specifications
| Item | Parameter |
|---|
| Battery Type | LiFePO4 Lithium Iron Phosphate Battery |
| Nominal Voltage | 51.2V (48V System) |
| Nominal Capacity | 190Ah |
| Rated Energy | 9728Wh |
| Continuous Discharge Current | 150A |
| Peak Discharge Current | 220A (3s) |
| Cycle Life | ≥5500 Cycles @ 80% DOD |
| Waterproof Grade | IP54 |
| Operating Temperature | Charge: 0℃~45℃; Discharge: -20℃~60℃ |
| Dimension (L*W*H) | 580*310*245mm |
| Net Weight | 68kg |
| Built-in BMS | Yes (High-Load & Temp Control) |
| Warranty | 5 Years |
| Certifications | CE, FCC, UN38.3, MSDS, IEC62619 |
Compatible Models
English: Compatible with all 48V high-power golf cart models, including upgraded EZGO RXV, Club Car Precedent high-power version, Yamaha Drive2 off-road golf carts, as well as modified golf carts, hilly terrain venue vehicles and heavy-load sightseeing carts.
Application Scenarios
English: Suitable for high-end golf club full-day service fleets, large scenic spot long-distance sightseeing vehicles, hilly terrain golf courses, farm heavy-duty transport carts, and commercial equipment requiring long-time high-load continuous operation.
FAQ
Q1: What is the main advantage of 48V 190Ah compared with 150Ah model?
A1: The 190Ah model has larger capacity and higher load capacity. It is suitable for long-hour continuous operation and hilly terrain driving, with longer single-charge range and stronger high-load stability.
Q2: Can this battery support long-distance climbing driving?
A2: Yes. With optimized high-load discharge performance, it can maintain stable power output during long-distance climbing, without power attenuation or stalling.
Q3: Is the battery suitable for high-intensity commercial operation?
A3: Absolutely. It adopts commercial-grade cell and heat dissipation design, with 5500+ long cycle life, fully adapting to high-frequency and high-intensity daily commercial operation.
Q4: Does the large capacity affect charging speed?
A4: It supports matching high-power fast chargers. Although the capacity is larger, the charging efficiency is significantly improved, which can meet daily rapid turnover demands.
Q5: Is the battery shell resistant to vibration and collision?
A5: The shell adopts enhanced anti-vibration and anti-collision structure, which can cope with bumpy road conditions and frequent vehicle start-stop during long-term use.
