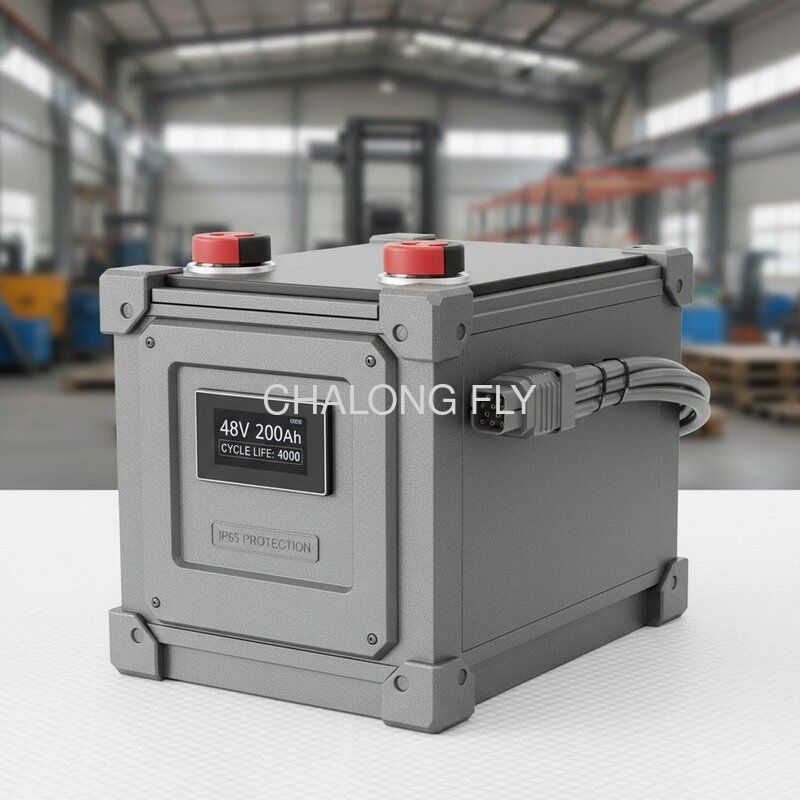

48V 200Ah Forklift Lithium Battery with 4000 Cycle Life and IP65 Protection for Electric Forklifts
48V 200Ah Forklift Lithium Battery with 4000 Cycle Life and IP65 Protection for Electric Forklifts 48V 200Ah Forklift Lithium Battery with 4000 Cycle Life and IP65 Protection for Electric Forklifts
contacto

48V 200Ah Forklift Lithium Battery with 4000 Cycle Life and IP65 Protection for Electric Forklifts

Quantidade de ordem mínima : 10-1000 unidades Preço : negociável
Detalhes da embalagem : Estojo de madeira e estojo Tempo de entrega : 7 a 15 dias úteis
Termos de pagamento : T/T Habilidade da fonte : 1000 unidades por mês
Lugar de origem: Hunan, China Marca: CLTF
Certificação: CE/IEC/RoHS/UN38.3/FCC Número do modelo: CLFC-110

Informação detalhada
Tensão Nominal: 12V/24V/36V/48V/60V/72V/96V Capacidade Nominal: 80AH/150AH/200AH/300AH/400AH/500AH/600AH
Tipo de Bateria: Bateria de lítio LIFEPO4 Tipo de armazenamento: -20℃ -60℃
Material do ânodo: NCM/LFP aplicativo: As cadeiras de rodas elétricas, sistemas de Electric Power, sistemas do armazenamento de energia sol
Certificação: CE/ROHS/MSDS/UN38.3 OEM/ODM: Disponível
Ciclo de vida: > 3000 vezes
Destacar:

48V 200Ah Forklift Lithium Battery

,

4000 Cycle Life LiFePO4 Battery Pack

,

IP65 Protection Electric Forklift Battery

Descrição de produto

I-SWAY Lithium Ion Forklift Battery
Advanced 24V, 48V, and 72V lithium iron phosphate (LiFePO4) battery packs with BMS for electric forklifts and pallet trucks
Technical Specifications
Voltage 25.6V 25.6V 51.2V 51.2V 51.2V 73.6V 73.6V 80V
Capacity 210Ah 280Ah 315Ah 460Ah 560Ah 460V 560Ah 460Ah
Maximum Charge Current 70A 80A 100A 130A 150A 150A 150A 150A
Maximum Discharge Current 200A 200A 250A 300A 300A 300A 300A 300A
Cycle Life: 4000+ cycles
Operation Temperature: -20℃ to +60℃
Storage Temperature: 0℃ to 45℃
Warranty: 5 years
Certifications: CE, MSDS, IEC62619, UN38.3, ROHS, UL
Protection Rating: IP65
Size: Customized to your requirements
Product Core Advantages
  • Large Capacity & High Endurance: Nominal capacity 48V 200Ah, rated continuous discharge current 50A, stable discharge platform. Suitable for 8+ hours continuous operation of electric counterbalance forklifts/stackers without mid-work charging interruptions.
  • Industrial Grade Fast Charging: Supports constant current & constant voltage fast charging, reaching 90% capacity in 2 hours. Enables charging during forklift shift changes or lunch breaks, offering 300% higher charging efficiency than conventional batteries.
  • Ultra-Long Cycle Life: Utilizes Grade A LiFePO4 cells with charge-discharge cycle life ≥4000 times, providing 5-8 years of normal use. Significantly reduces battery replacement frequency and enterprise procurement & maintenance costs.
48V 200Ah Forklift Lithium Battery with 4000 Cycle Life and IP65 Protection for Electric Forklifts 0 48V 200Ah Forklift Lithium Battery with 4000 Cycle Life and IP65 Protection for Electric Forklifts 1
Adaptation Scenarios & Forklift Models
Adaptation Operation Scenarios:
  • Warehousing & Logistics: Stereoscopic warehouse stacking, cargo loading/unloading, pallet transfer
  • Factory Workshop: Production line material transportation, finished product handling, workshop turnover
  • Port & Wharf: Container small cargo loading/unloading, on-site short-distance transfer
  • E-commerce Logistics Park: Express sorting, cargo inbound/outbound handling
Frequently Asked Questions
Q1: Is this 48V 200Ah battery compatible with my existing forklift? Do I need to modify the forklift?
A1: It is compatible with most mainstream electric forklifts (including domestic and imported brands). The standard size and interface are consistent with industrial forklift battery specifications. No modification to the forklift is required in most cases. If your forklift has special specifications, we can provide free customization of battery size and interface to ensure perfect adaptation.
Q2: What is the actual service life of the battery? How to ensure the cycle life of ≥4000 times?
A2: Under normal use (following the usage guidelines), the actual service life can reach 5-8 years. We adopt Grade A automotive LiFePO4 cells, match industrial-grade intelligent BMS management system, and go through 7 strict inspection procedures before leaving the factory. The cycle life of ≥4000 times (100% DOD) is tested and verified by third-party authoritative institutions.
Q3: What is the difference between fast charging and normal charging? Will fast charging damage the battery?
A3: Fast charging takes 2 hours to charge 0-90% (suitable for shift gaps to make up for power quickly), and normal charging takes 8 hours to charge 0-100% (suitable for charging during non-working periods such as nights). The battery supports industrial-grade constant current and constant voltage fast charging, and the built-in BMS will automatically adjust the charging current and voltage to avoid overcharging and overheating, so fast charging will not damage the battery or affect its service life.
Q4: Can the battery be used normally in extremely cold or high-temperature environments? What is the protection measure?
A4: It can be used normally in the environment of -20℃~60℃. For extremely cold areas (below -20℃), we can customize the low-temperature resistant version of the battery (with low-temperature protection module) to ensure stable discharge. The battery has IP67 industrial-grade protection, thickened cold-rolled steel shell and three-proof coated BMS, which can resist high temperature, cold, humidity and dust, and adapt to various complex workshop environments.
